Shrink sleeves now account for roughly 18% of the global label market, growing at a 5.5% CAGR according to AWA's Global Sleeve Label Market Study. Heat-shrink sleeves make up about 88% of that volume, with beverage applications leading the pack.
Here's the catch: the process looks simple. Slide a sleeve over a container, blast it with heat, done. In reality, results depend heavily on equipment calibration, film selection, and process control. Get one variable wrong, and you're looking at wrinkled sleeves, scorched film, or barcodes that won't scan.
This guide walks through when shrink sleeves make sense, the exact application steps, equipment requirements, key process variables, common mistakes, and troubleshooting fixes.
TL;DR
- Shrink sleeve application: apply printed film to a container, then shrink it in a heat or steam tunnel
- Best for 360° branding, tamper evidence, and contoured containers flat labels can't fit
- Requires matched film (PETG, PVC, PLA, OPS), correctly sized sleeves, and calibrated heat tunnels
- Success hinges on temperature, dwell time, and material compatibility
- Most failures come from poor sizing, wrong heat settings, or skipped test runs

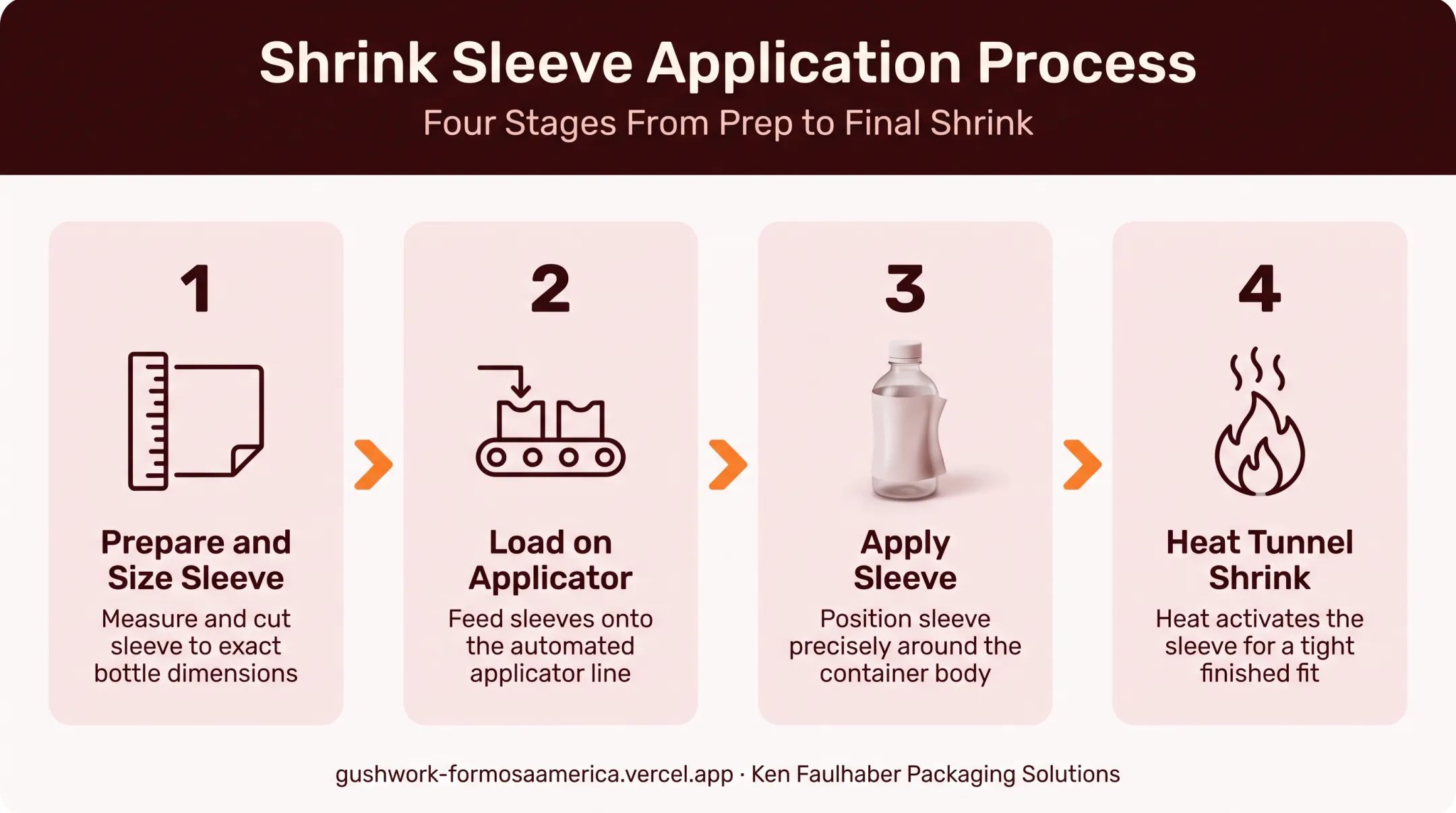

How to Apply Shrink Sleeve Labels
Step 1: Prepare and Size the Sleeve
Before anything touches your production line, confirm the sleeve's shrink profile actually matches your container.
- Measure precisely: height, circumference, neck taper, shoulder curve
- Verify pre-distortion: artwork needs to account for uneven shrinkage across the body, neck, and shoulder zones
- Inspect seams: defective seams cause failures downstream, not just cosmetic issues
R&R Incorporated's shrink sleeve sizing formula starts with the largest container circumference, divides by two, then adds 3 mm for layflat sizing. Automatic applicators typically require final sizing confirmation from the equipment manufacturer.

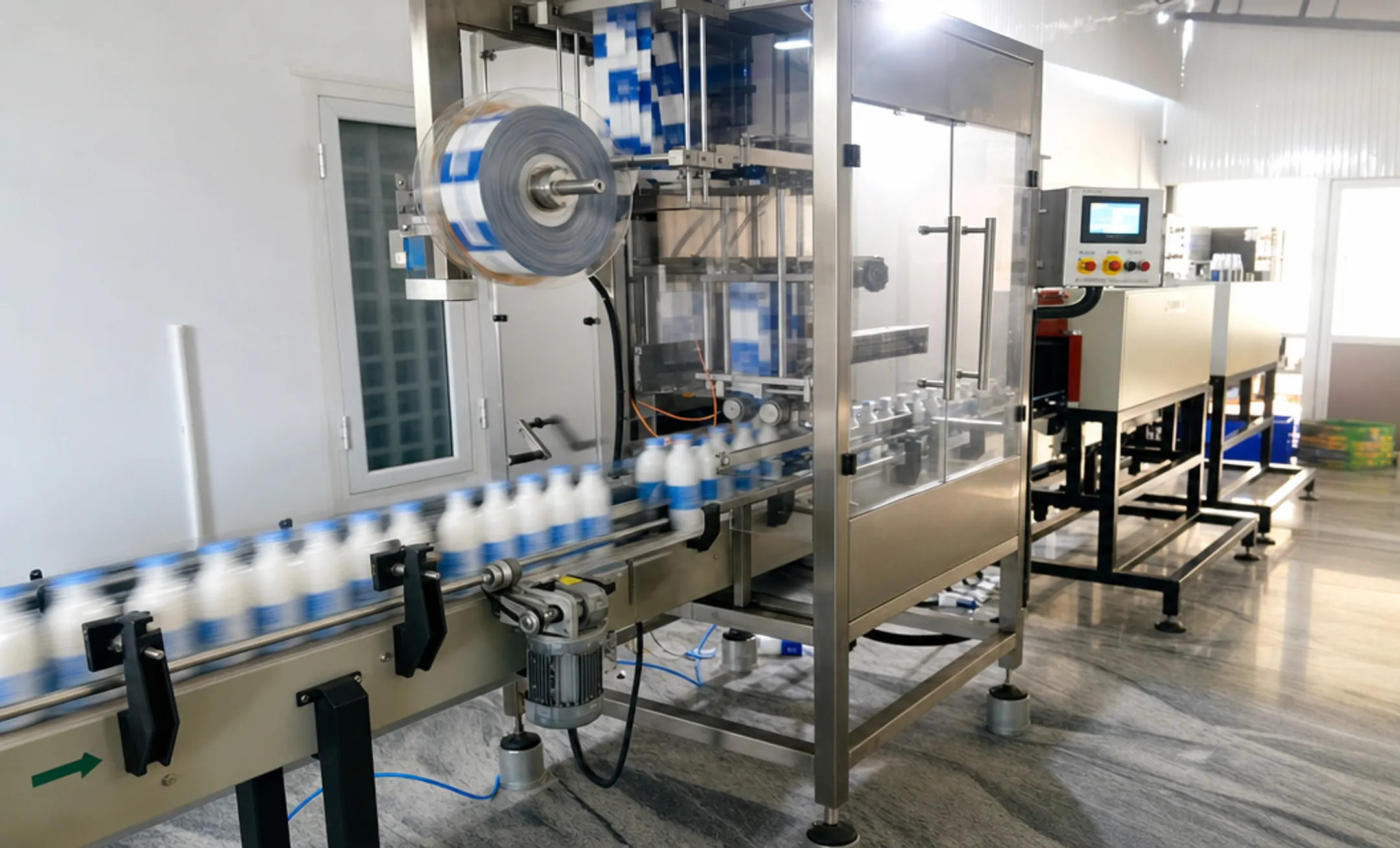

Step 2: Load and Position on the Applicator
Your applicator setup depends entirely on production volume and container shape.
- Match machine speed and sleeve-opening mechanism to your container size
- Confirm containers index consistently on the conveyor
- Confirm whether manual or automatic loading better suits your run length
A container with a bottom radius helps the sleeve lock into place naturally. A straight-walled bottom, by contrast, can let the sleeve pull upward during shrink — something worth checking before a full production run.
Step 3: Apply the Sleeve
This is where alignment problems get baked in permanently if you're not watching closely.
- Verify the sleeve drops squarely, centered, without folding
- Check overlap positioning where tamper-evident bands are required
- Match line speed to machine capability
Line speeds vary enormously. Compact applicators run around 30-100 containers per minute, while high-speed units handle up to 600-800 containers per minute, according to Axon's published equipment specifications.
Step 4: Run Through the Heat/Steam Tunnel
Shrinking is purely a function of time and temperature. Get either one wrong, and the sleeve won't fully conform or it will scorch.
- Set tunnel temperature and conveyor speed based on your specific film (PETG, PVC, PLA, and OPS all behave differently)
- Confirm even heat distribution around the full container for uniform shrink
- Inspect finished units for wrinkles, bubbling, or incomplete shrink before they hit packaging
Steam tunnels use thermocouples and valves to compensate for product thermal load, including cold or full containers. Always run the actual film on the actual container at production speed before committing to a full run.
When Should You Use Shrink Sleeve Application?
Shrink sleeves aren't automatically the right choice. Compared to pressure-sensitive labels or direct can printing, they fit best in specific situations:
Shrink sleeves make sense when you need:
- Full-body branding on uniquely shaped or contoured containers
- Tamper-evident sealing built into the label itself
- Bundled multi-pack packaging that wraps multiple units together
- Curved surfaces where flat labels simply won't lay flat
Shrink sleeves are less practical for:
- Very short production runs
- Businesses without access to applicator and tunnel equipment
- Situations where design changes happen frequently
If you're running small batches or lack tunnel infrastructure, pressure-sensitive labels are usually the more cost-effective route. Match the format to your container, volume, and equipment access.
What You Need Before Applying Shrink Sleeve Labels
Getting the inputs right upfront saves you from expensive reprints and unplanned downtime later.
Equipment Requirements
- An automatic or manual sleeve applicator matched to your container speed and shape
- A heat tunnel (steam, electric, or radiant) suited to your chosen film
- Stable infeed and container handling so bottles stay oriented through application
Sleeve and Material Requirements
- Correctly sized sleeves based on precise measurements and shrink ratio math
- Film selection that fits your sustainability goals, container shape, and budget
- Print-ready artwork with bleed, seam allowance, and shrink distortion already accounted for
Ken Faulhaber Packaging Solutions connects brands to Formosa’s shrink sleeve capability through RBD Packaging, including custom rotogravure printing and finishing for 360-degree sleeves. Reviewing film structure and format options in consultation, not after a failed test run, prevents the costliest mistakes.
Compliance and Handling Readiness
- Proper storage conditions to prevent pre-shrinking or brittleness from temperature swings
- Operator familiarity with barcode placement and seam positioning to preserve scannability
Key Parameters That Affect Shrink Sleeve Application Results
Consistent results come down to controlling a handful of process variables tightly. Loosen your grip on any one of them, and quality slips.
Heat Tunnel Temperature
Why it matters: Temperature determines how completely and evenly the film shrinks.
Impact on quality: Too low, and you get incomplete shrink with visible wrinkles. Too high, and you risk scorching or distorting the film entirely.
Conveyor/Dwell Time
Why it matters: Dwell time controls how long each container sits in the heat.
Impact on quality: Too little time leaves sleeves loose. Too much time can melt or warp the film, even if temperature settings look correct on paper.

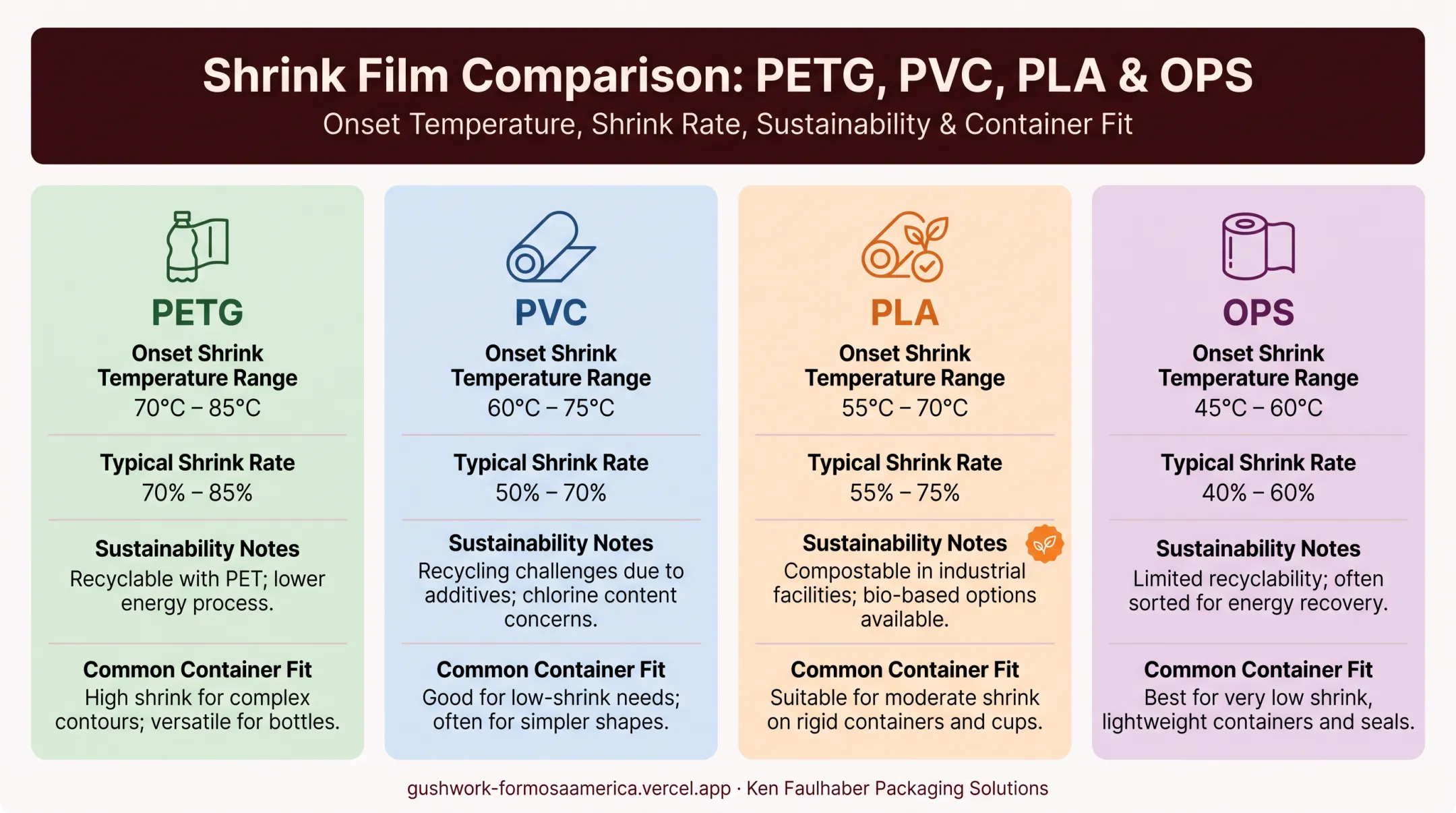

Film Material and Shrink Ratio
Why it matters: PETG, PVC, PLA, and OPS each shrink at different rates and temperatures. PDC's technical guidance notes that film shrink behavior follows a curve rather than a single number. Onset temperature, shrink rate, and maximum shrink all vary by material and even by ink coverage.
Impact on quality: Mismatched material and container shape leads to distortion. OPS, for example, can actually grow in the machine direction at certain temperatures rather than shrink — the opposite of what you want.
Artwork Pre-Distortion
Why it matters: Film does not shrink evenly across a container's contours. The body, neck, and shoulder each need different shrink amounts.
Impact on quality: Skip proper pre-distortion, and logos stretch, text warps, and barcodes end up unreadable, even when the shrink process itself worked perfectly.
Common Mistakes When Applying Shrink Sleeve Labels
Most shrink sleeve application failures come from planning gaps, not equipment problems.
- Skipping precise measurement: using a generic sizing template instead of actual container dimensions
- Choosing the wrong film: mismatched to the container shape or sustainability target
- Running inconsistent tunnel temperatures: uneven heat across zones that causes patchy shrink
- Ignoring seam placement: barcode scan failures or visible misalignment on the finished package
Troubleshooting Shrink Sleeve Application Issues
Even a well-planned setup can run into trouble mid-production. Here's what to check first.
| Problem | Likely Cause | What to Check |
|---|---|---|
| Wrinkling or loose fit | Insufficient heat exposure or wrong film-to-container match | Tunnel temperature, dwell time, sizing calculations |
| Scorched or discolored film | Excessive heat or uneven zone distribution | Tunnel zone calibration, line speed |
| Barcode fails to scan | Barcode placed over a curve or seam | Artwork placement guidelines, pre-distortion accuracy |
| Sleeve pre-shrinks before application | Improper storage or shipping temperatures | Warehouse and transport temperature controls |

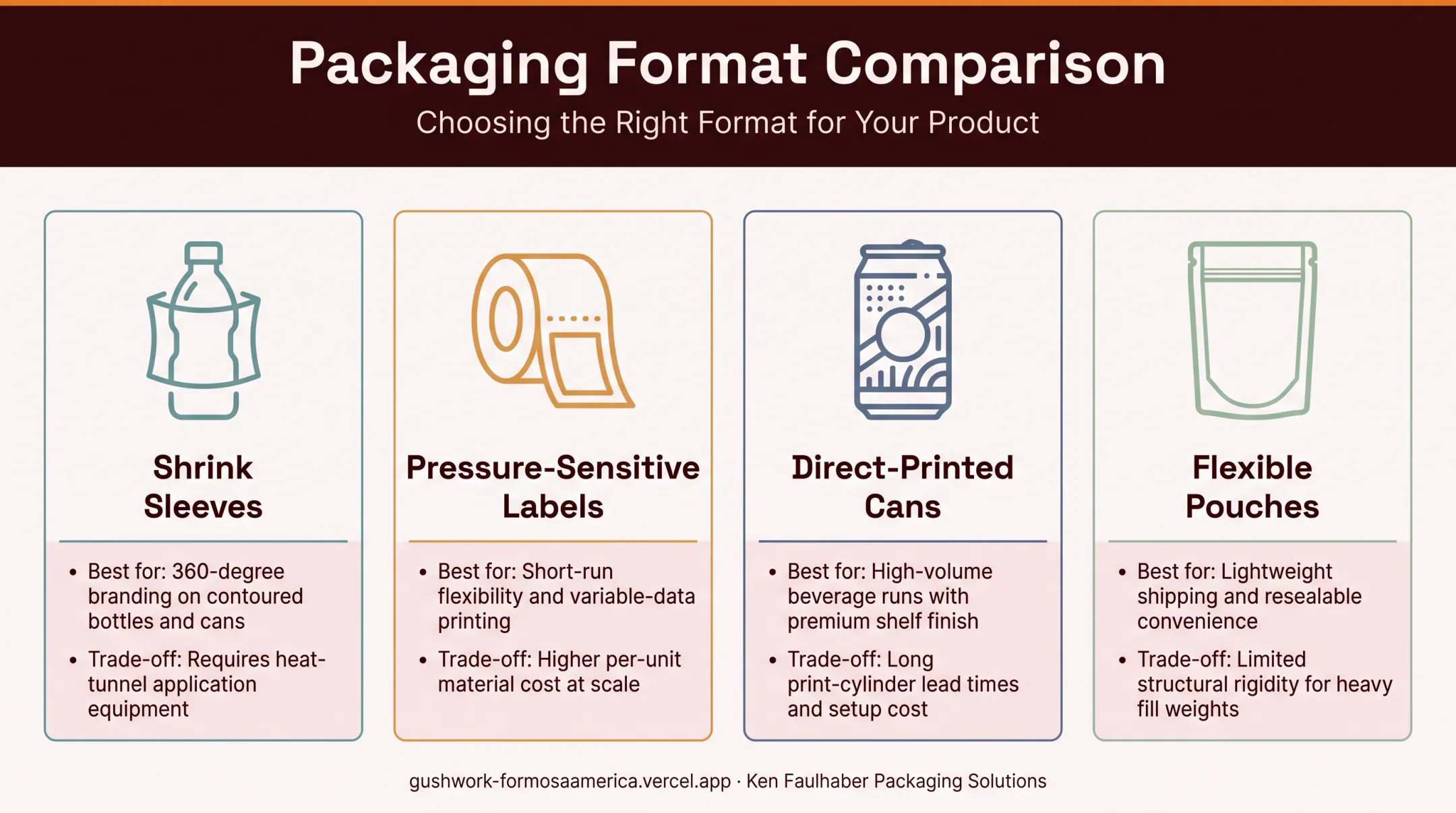

Alternatives to Shrink Sleeve Application
Depending on container shape, run size, and budget, another format might serve your product better.
Pressure-Sensitive Labels
When it's better: Standard cylindrical containers, short runs, or frequent design changes.
Key trade-offs: Less design real estate, and no built-in tamper evidence.
Direct-Printed Cans
When it's better: High-volume beverage production with a fixed, unchanging design.
Key trade-offs: Higher upfront commitment per SKU and much less flexibility if you need to update designs.
Custom Pouches and Flexible Packaging
When it's better: Products needing moisture or oxygen barrier protection rather than rigid container branding: for example, food or pharmaceutical goods.
Key trade-offs: Requires entirely different fill-line equipment and a different packaging design approach.
Comparing formats is easier when one partner covers more than one option. Ken Faulhaber Packaging Solutions connects you to Formosa's flexible film, thermoforming, and shrink sleeve capabilities, so you can evaluate alternatives without juggling separate suppliers.
Conclusion
Shrink sleeve application delivers full-body branding and genuine tamper-evident protection when equipment, film choice, and heat settings are dialed in correctly. Most failures trace back to the same handful of causes: poor sizing, mismatched materials, or inconsistent heat tunnel calibration.
Before committing to a full production run, weigh shrink sleeves against pressure-sensitive labels, direct printing, or flexible pouches for your specific container and volume. Brands making that call benefit from a packaging partner who can compare options across a full manufacturing network rather than pushing a single format—then validate fit on your line before scaling.
Frequently Asked Questions
How do shrink sleeves work?
A printed plastic film sleeve is placed loosely over a container, then passed through a heat or steam tunnel. The heat activates the film, shrinking it tightly to conform to the container's exact shape.
At what temperature does shrink wrap shrink?
Activation temperatures vary by film type — PETG, PVC, PLA, and OPS each have different shrink curves rather than a single trigger point. The reliable approach is testing your specific film on your actual container and tunnel setup before running full production.
What's the difference between a shrink sleeve and a pressure-sensitive label?
Pressure-sensitive labels use adhesive and typically cover only part of a container. Shrink sleeves wrap the full 360 degrees and conform to the container's shape through heat.
Can shrink sleeves be applied manually?
Manual application with a heat gun is possible for prototypes or very small test runs. It's not recommended for consistent, professional-grade production results.
Are shrink sleeves recyclable?
Recyclability depends on the film material and local recycling infrastructure. PETG generally recycles more easily than PVC, and perforated tear-strips help consumers remove sleeves before recycling the container itself.
What container materials work with shrink sleeve application?
Plastic, glass, and metal containers are all compatible, as long as they can withstand the heat and shrink forces generated inside the tunnel.
