Choosing the right clamshell isn't simple, though. Brands juggle moisture and oxygen barrier requirements, tamper-evidence rules, sustainability pressure, and shelf appeal, often with a tight production window. Pick the wrong material or partner, and you're stuck retooling mid-launch.
This guide covers what clamshell packaging actually is, how it's manufactured, which materials fit which applications, and what sustainability really means for this format.
Key Takeaways
- Clamshells are hinged, two-piece thermoformed plastic packages molded to a product's exact shape
- Material choice (PET, RPET, PVC, PETG) determines clarity, recyclability, and barrier strength
- Tamper resistance, shelf appeal, and nestable design improve retail security and shipping efficiency
- Recycled and recyclable structures deliver sustainability goals without sacrificing strength
- An integrated manufacturing partner cuts handoffs and shortens lead times
What Is Thermoformed Clamshell Packaging?
Thermoforming heats a plastic sheet until it's pliable, then forms it to a mold using vacuum or air pressure. Once cooled, the sheet holds the mold's exact shape.
A clamshell is a specific style of thermoformed package: two connected halves, usually joined by a hinge, that fully enclose a product. Closure comes via friction fit, snap, or heat seal, depending on the application.
Clamshell vs. blister pack: buyers often mix up these terms:
- Clamshell: Fully enclosing, hinged, typically one continuous piece of plastic
- Blister pack: A formed plastic dome mated to a card or foil backing, not fully self-contained plastic
Clamshells can be transparent or opaque, permanently sealed or resealable. The right choice depends on the product inside and how it moves through the supply chain.

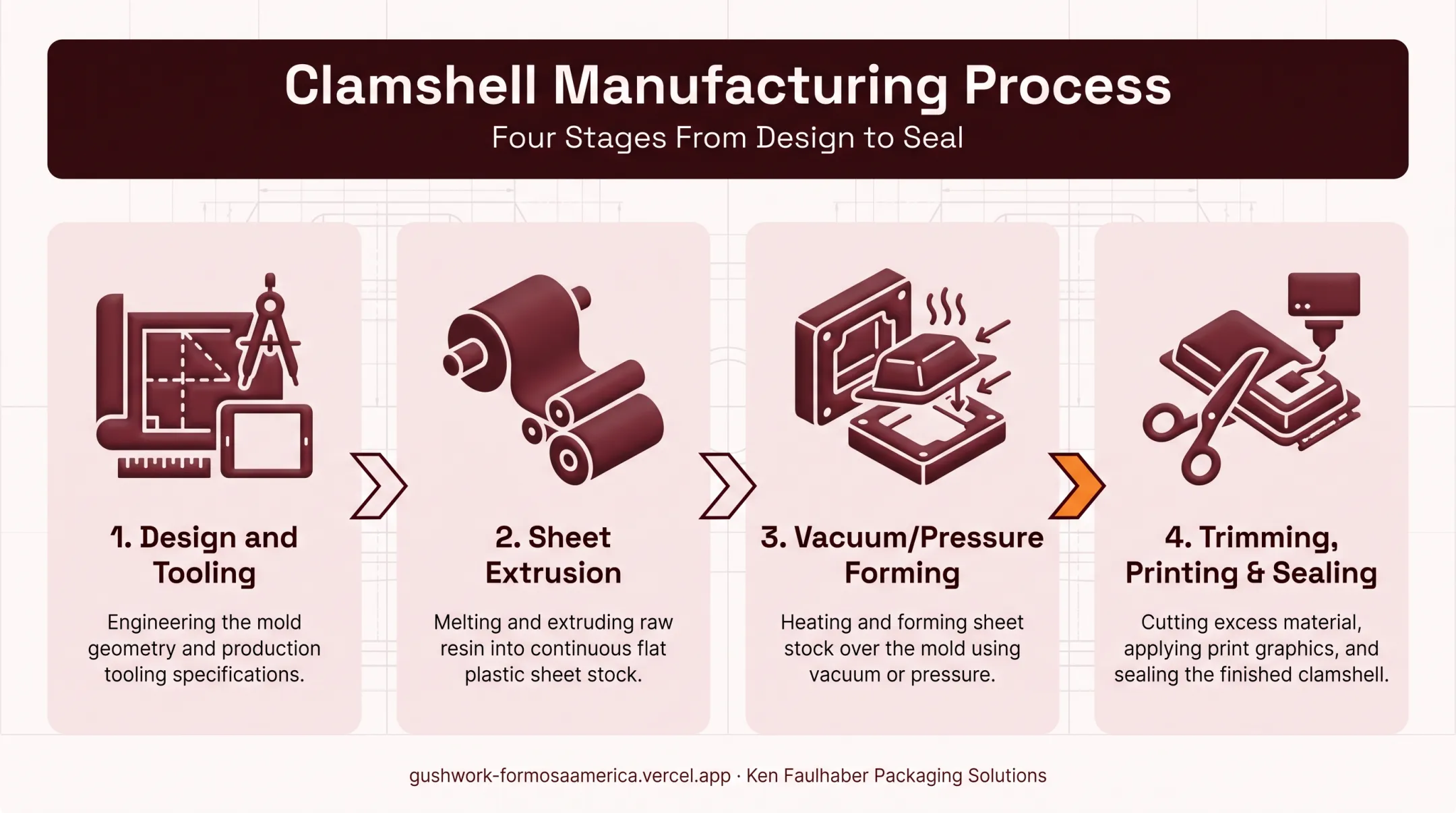

How Thermoformed Clamshell Packaging Is Made
Design and Tooling
Custom clamshells start with CAD design work that maps cavity depth, contours, hinge placement, and die-cut lines to the product's exact dimensions. This is where fragile electronics get snug internal ribs and produce gets ventilation slots.
Sheet Extrusion and Forming
Plastic resin is extruded into flat sheet stock, then reheated until pliable. The sheet is drawn over a mold using vacuum pressure (pulling air out beneath the sheet) or pressure forming (pushing air down from above). Some jobs use both methods when the cavity needs extra depth or fine detail.
Trimming, Printing, and Sealing
Once cooled, excess plastic is trimmed away. Many clamshells then receive printed insert cards or direct graphics before sealing via:
- Friction fit: snap closure, no adhesive or heat needed
- RF or heat seal: permanent bond, common for tamper-evident needs
- Adhesive seal: used for specific closure requirements
Ken Faulhaber Packaging Solutions connects brands to Formosa's in-house thermoforming, rotogravure printing, and fill-and-seal capabilities under one roof. That matters because coordinating three separate vendors for forming, printing, and filling adds weeks to a timeline. Under one roof, those handoffs disappear.
Types and Materials of Thermoformed Clamshells
Common Formats
- Two-piece clamshells: Separate top and bottom, sealed together after filling
- Fold-over/hinged: Single piece with a built-in hinge, closes like a book
- Tri-fold freestanding: Three connected panels that stand upright on the shelf

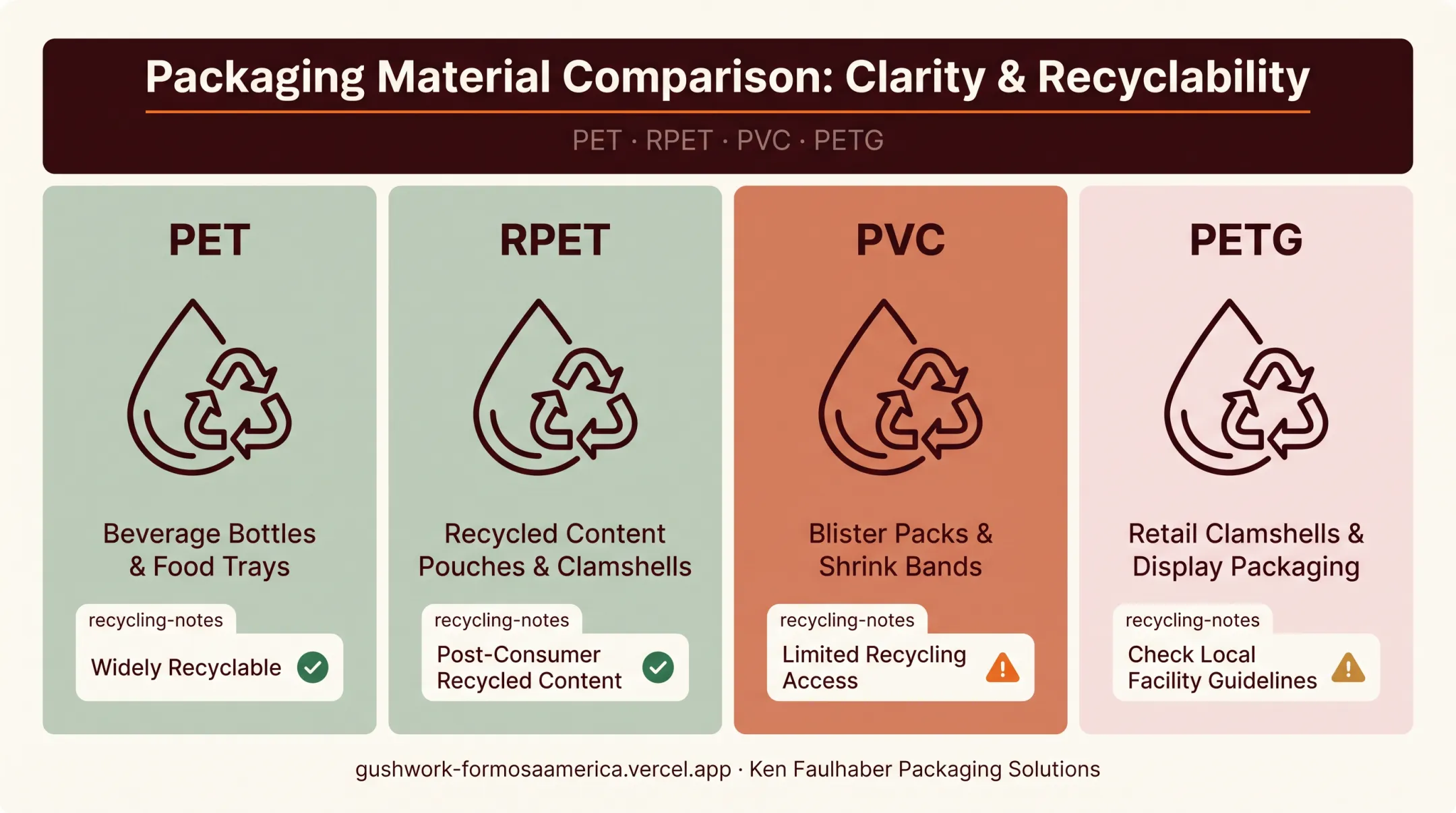

Material Options
| Material | Best For | Recycling Notes |
|---|---|---|
| PET | Food, general retail, high clarity | Recyclable when clean; preferred mono-material |
| RPET | Sustainability-focused brands | Recycled content, food-safe under FDA guidance |
| PVC | Low-cost applications | Contaminates PET recycling stream |
| PETG | Impact-resistant, sterilizable goods | Not compatible with PET bottle recycling stream |
PET offers strong clarity plus useful oxygen, water, and CO2 barrier properties. It is authorized for food-contact use under 21 CFR 177.1630.
PVC also delivers clarity and durability, but the Association of Plastic Recyclers flags it as a contaminant in the PET recycling stream. Weigh that risk before choosing PVC purely on cost.
Opaque and tinted PCR options are emerging for brands that want recycled content without giving up structural rigidity. Confirm specific formulations and recovery pathways with your manufacturing partner rather than assuming blanket recyclability.
Key Benefits of Thermoformed Clamshell Packaging
Product protection is the headline benefit. A 2024 Harris Poll for DS Smith found that 60% of Americans received damaged goods from online retailers, with an estimated 700 million damaged packages annually. Rigid clamshell construction directly addresses crushing, tearing, and internal shifting.

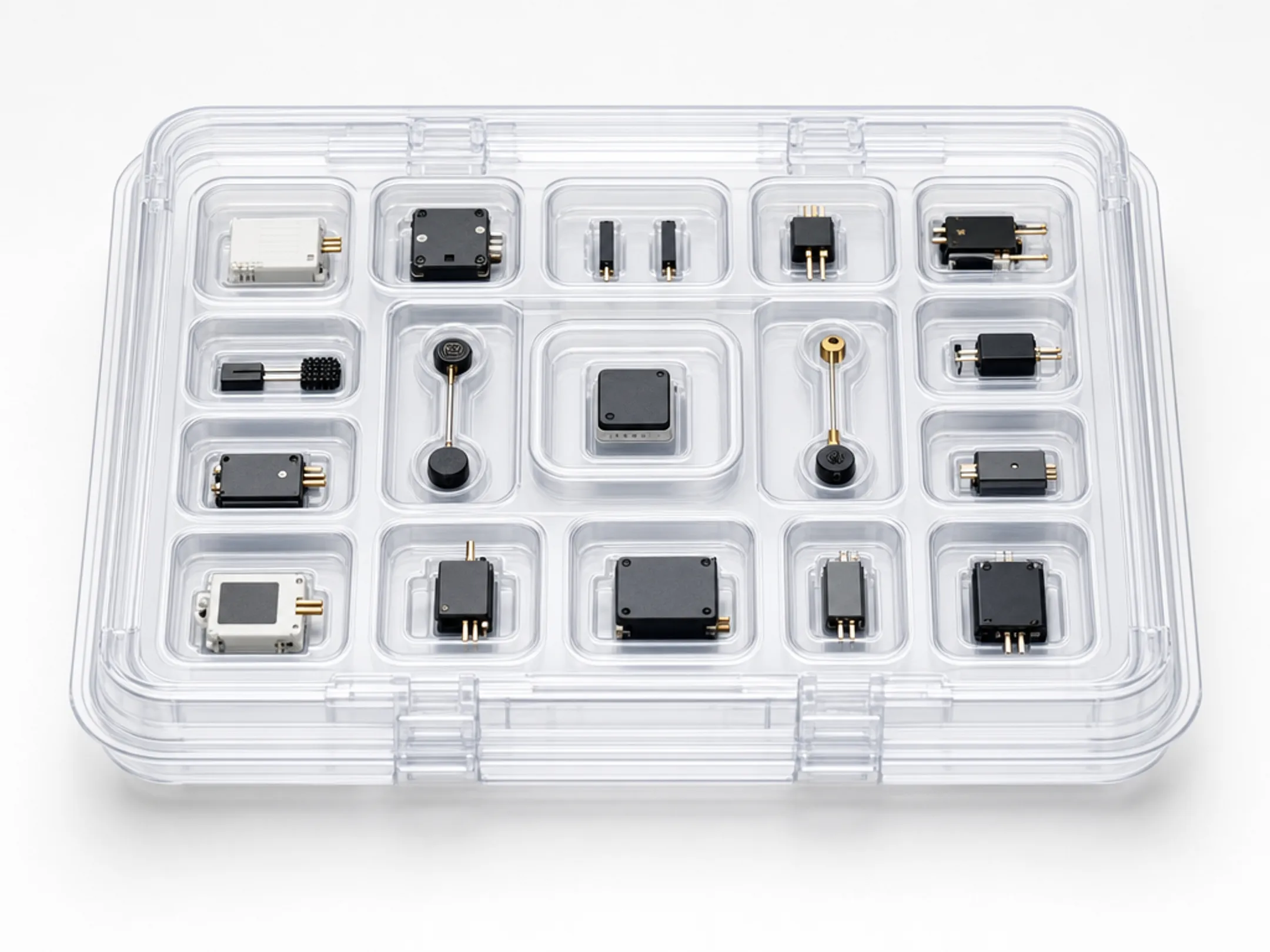

One documented case makes this concrete. Electronics supplier Powell Electronics faced over 1,500 damage-related returns per year from bent pins and loose parts. After switching to a reclosable clamshell, the company reported a 97% reduction in damaged parts and a 90% drop in material and labor costs.
Damage control is only part of the payoff. Clamshells also deliver on the shelf and in the supply chain:
- Builds purchase confidence with high-clarity shells shoppers can inspect before buying
- Beats fully sealed packs with reclosable designs built for repeat-use products
- Molds to nearly any shape, from berries to power tools
- Cuts shipping and storage volume through nesting; stock tooling lowers upfront costs versus fully custom molds

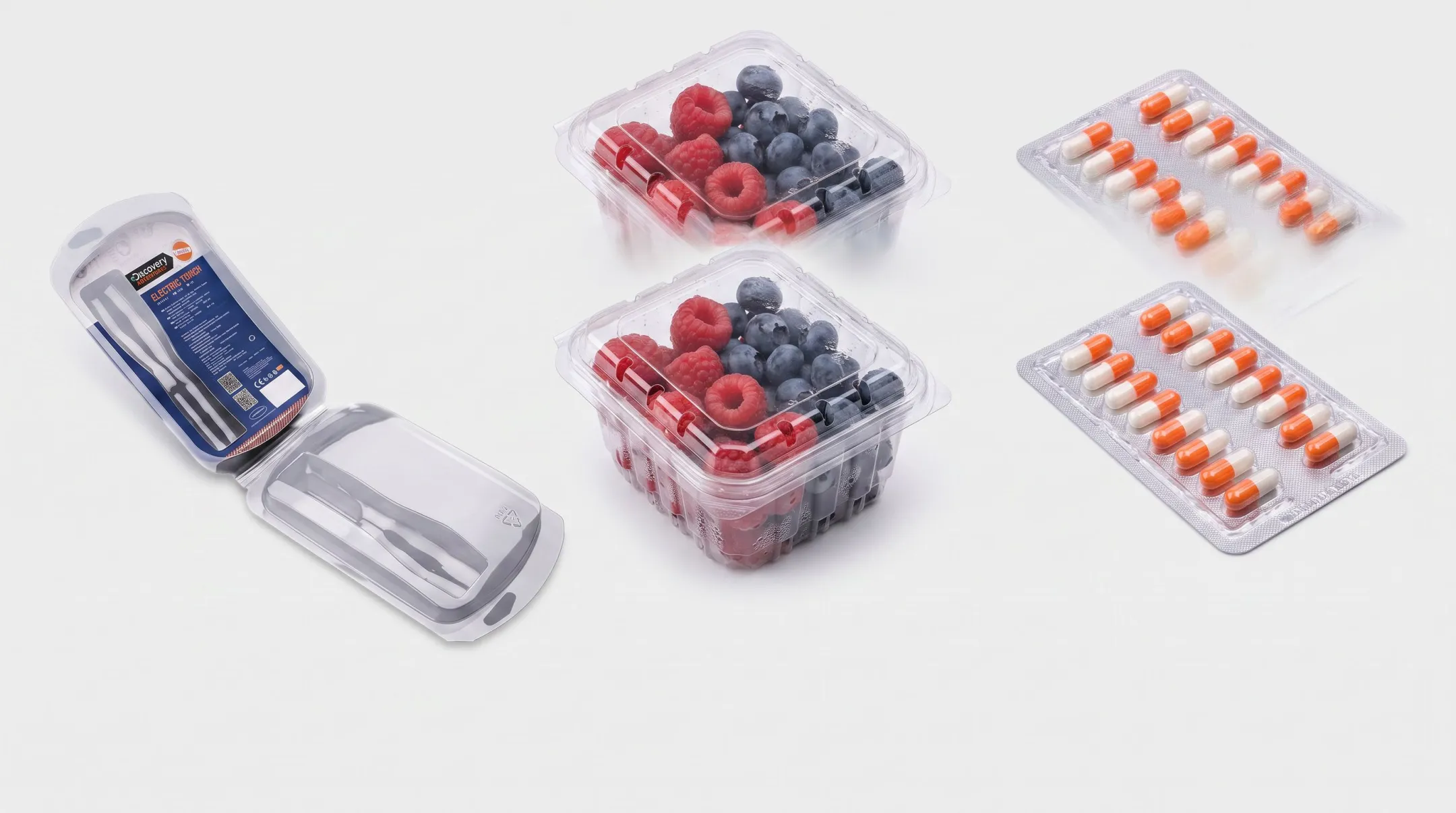

Industries and Applications
Clamshells show up across very different use cases, each solving a distinct problem:
- Food and beverage: Berry clamshells manage humidity and airflow. USDA research found low-vented designs improved blueberry quality but not blackberries, so venting must match the crop.
- Meat and poultry: Barrier-focused clamshells extend shelf life and support retail presentation.
- Pharmaceutical/OTC: Tamper-evident sealing satisfies 21 CFR 211.132, which requires visible evidence if a package has been breached.
- Cannabis: Child-resistant, tamper-evident formats support compliance.
- Electronics: Retention features and impact protection reduce shipping damage, as seen in the Powell case above.
- Consumer goods: Retail-ready presentation with theft-deterrent sealing.
Ken Faulhaber Packaging Solutions works as a single point of contact across these segments, connecting brands to Formosa's multi-format capabilities, including plastic thermoforming alongside flexible and sustainable packaging structures. That matters when a brand needs both a produce clamshell and a flexible pouch for a different SKU. One conversation covers both.
Sustainability Considerations for Clamshell Packaging
PET-based clamshells are widely recyclable, but there's a catch: food residue has to be cleaned off before the material qualifies for most recovery streams. A dirty clamshell often ends up in the landfill regardless of the resin.
The bigger challenge is systemic. The Recycling Partnership reports that only 14% of the nearly 1.5 billion pounds of PET thermoforms generated annually in the U.S. actually get recycled. Only 30% of North American reclaimers can effectively process thermoform packaging, which helps explain the gap.
There's some momentum, though. NAPCOR reported 264 million pounds of PET thermoforms collected across the U.S. and Canada in 2024 — a record high. Recycled content in converter feedstock did dip slightly year-over-year, which shows recycled-content supply is still catching up to demand. Until collection infrastructure catches up, brands still control material and design choices that improve recovery odds.
Practical advice for brands:
- Evaluate recyclable, mono-material structures that don't require retooling your existing fill line
- Confirm your local reclaimer actually accepts the finished clamshell design, not just the resin type
- Treat "recyclable" claims skeptically unless a collection pathway is documented
Frequently Asked Questions
What is thermoform packaging?
Thermoforming heats a plastic sheet and molds it over a tool using vacuum or pressure. The process creates custom-shaped rigid packaging such as trays, blister packs, and clamshells.
What is clamshell packaging?
Clamshell packaging is a hinged, two-part plastic enclosure that fully surrounds a product. It provides both protection and full visibility, typically closed with a friction fit, snap, or heat seal.
How is clamshell packaging different from blister packaging?
Clamshells are hinged and fully enclose the product in one continuous plastic shell. Blister packs typically pair a formed plastic dome with a paperboard or foil backing card.
Is clamshell packaging recyclable?
PET-based clamshells are recyclable when cleaned of food residue, though acceptance depends on local reclaimer capabilities. PVC clamshells are less commonly accepted and can contaminate PET recycling streams.
What materials are used for clamshell packaging?
Common materials include PET (clear, recyclable), RPET (recycled content), PVC (low-cost, less eco-friendly), and PETG (impact-resistant, sterilizable).
How do I choose the right clamshell packaging for my product?
Start with product size, fragility, and barrier needs (moisture and oxygen sensitivity). Ken Faulhaber Packaging Solutions can help match those requirements to the right format and material.
